Malo 40 Classic

Details

• Make: Malo
• Model: 40 Classic
• Engine Make & Model: Yanmar 4JH54E
• Horsepower: 54
• Fuel Type: Diesel
• Price: £225,000
• Location: In Newcastle upon Tyne
• Keel: Fin
• Hull Construction: Fibreglass (GRP)
• Drive Type: Shaft driven 3-bladed propeller

Dimensions

• Beam: 3.83m
• Draft: 1.92m
• LWL: 10m
• LOA: 12.4m
• Displacement: 9480kg
• Fuel Tank Capacity: 261l
• Water Tank Capacity: 454l
• Builder: Malo Yachts
• Designer: Leif Angermark
• Hull Type: Monohull

Summary

The phrase “Blue Water Cruiser” is often misused but in the case of the Malo 40 this suits her perfectly. Extremely well built, this go anywhere sailing yacht has the ‘Classic' layout with extra aft deck space, additional lazarette locker and additional storage lockers throughout the boat which will allow sufficient amount of equipment and spares to allow you to cruise happily for months with no worry about batterypower due to the 280W solar array. Below decks is a joy to behold with 2 generous cabins, 2 heads with holding tanks and quality furnishings. Reliable and economical inboard Yanmar 4JH54 will cruise happily at 6 knots should the wind die. Easy to handle sail plan with roller furling headsail and in mast furling main. All standing and running rigging replaced in 2023. New suit of Sanders sails. Comprehensive electronics package including AIS, radar and Echomax radar target enhancer. Full cockpit enclosure NEW 2023. Hull topsides polished, hull antifouled, and anodes replaced in June 2025.

Mechanical

Vessel powered by a Yanmar 4JH54E inboard diesel engine. This 4-cylinder work horse is fresh water cooled via a heat exchanger that will provide hot water when on passage. The engine is situated beneath the solid companionway steps with easy access to both front, back and side making servicing and daily checks very easy indeed. Talking of servicing, the most recent was in April 2024 and the spares are on board ready for this years service. The engine has only completed 1188 hours which equates to a measly 75 hours a year.
Reduction gearbox driving a stainless-steel shaft and a three bladed folding 'Flex O Fold' propeller. The propeller shaft is protected by a moulded skeg on the hull. New cutlass bearing fitted 2024
Engine start panel mounted in a cockpit coaming adjacent to the wheel. Audible and visual warning lights on panel for temperature, oil pressure and charging. Single lever morse control mounted on steering binnacle.

Electrical

12/240V power on board. Bank of 3x12 batteries providing power to the anchor windlass, bowthruster and onboard systems. There is a single 12V crank battery for engine start. All batteries replaced in 2023. In true Malo design, the 12/240V distribution panel is a thing of beauty with illuminated and fused selector switches.
Batteries are fitted with selector switches and are recharged via the engine alternator, the highly efficient 280W solar panels or the onboard smart charger. There are 240V, 12V and USB charging points throughout the boat interior and cockpit. Onboard Mastervolt battery charger. Sterling Pro-Save E galvanic isolator

Rigging

Selden deck stepped anodised aluminium, twin spreader mast and boom with rodkicker. Stainless steel standing rigging replaced in 2023. The shrouds are situated inboard allowing easy access around the decks for the crew. Lower sections of the shrouds are fitted with protective aluminium covers which prevent damage to the sails. Roller furling headsail system with furling line and sheets led aft to helm. In mast furling mainsail with vertical battens. Electric Self-tailing winches within easy reach of helm makes shorthanded sailing a reality. Additional halyard winches mounted on mast.
Sails are by Sanders in DP084 Vectron and include a vertically battened furling main and a roller reefing headsail with UV strip. The Sanders main was new in 2023, and the Sanders genoa was purchased 2021 but not used until 2023. There is a spare suit of serviceable sails from 2009.

Navigation

• Plastimo Olympic 135 binnacle mounted compass
• Raymarine C90W colour Chartplotter with radar overlay
• Raymarine 700AIS transponder - NEW 2023
• Navionics cartography with 2024 updates
• Raymarine ST6002 autopilot with S100 remote
• Raymarine ST60+ Depth
• Raymarine ST60+ Speed/Log
• Raymarine ST60+ Windspeed/Direction
• 54E DSC VHF - at chart table
• Raymarine ST60 Graphic - at chart table
• Navigation lights with LED bulbs

Deck

• Lofrans vertical electric windlass with chain and warp gypsies
• Stainless steel stem head fitting with iunbuilt roller
• 20Kg Rocna anchor with 60M calibrated chain - New 2024
• Snubbing line - New 2023
• Anchor tripping line with buoy and chum - New 2024
• Deck vents with stainless steel protective guards

Safety

• Ocean Safety 4-man canister liferaft - NEW 2023
• Webbing jackstays - NEW 2024
• Ocean Signal Rescue Me 406 EPIRB - NEW 2023
• Echomax Active XS electronic radar target enhancer - NEW 2023
• Danbuoy
• Fire blanket
• Fire extinguishers
• Odeo Flare Mk3 electronic distress flare
• Gas signalling horn

Canvas

• Sprayhood - NEW 2023
• Full height cockpit enclosure - NEW 2023

Miscellaneous

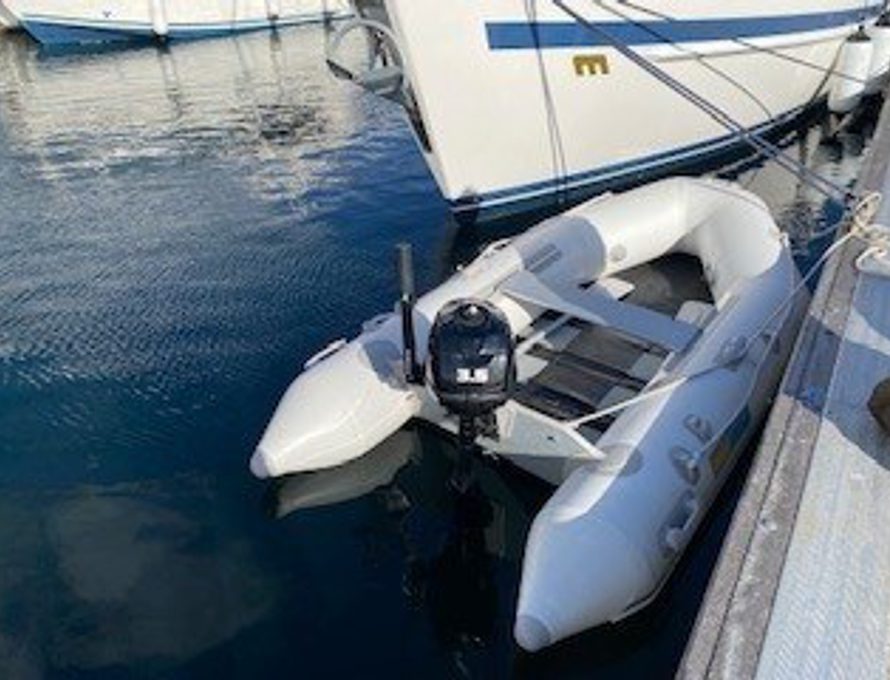

• Boatworld 280SLD inflatable dinghy - NEW 2022

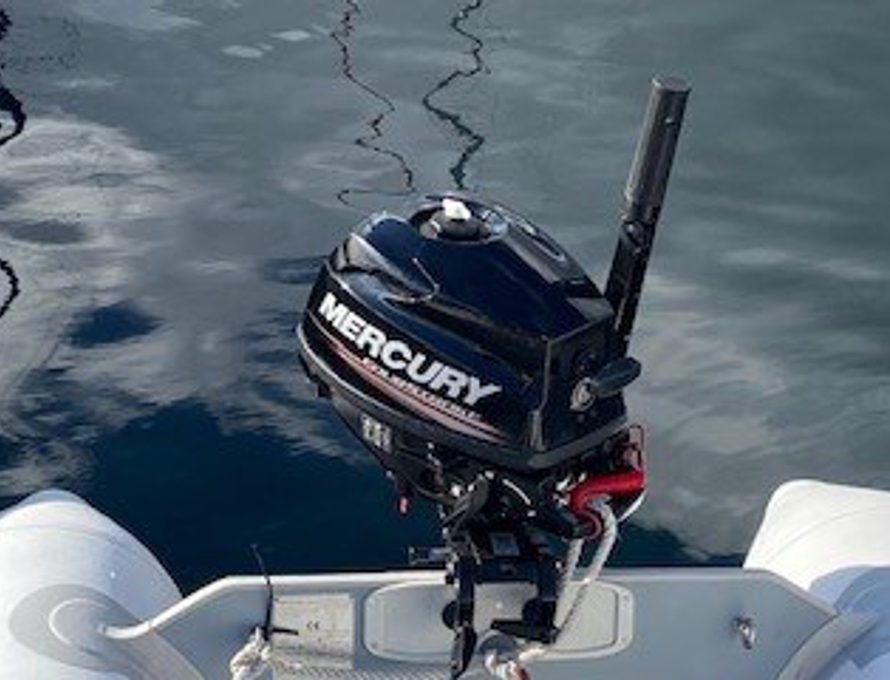

• Mercury 3.5Hp, 4-stroke outboard
• Mooring warps
• Fenders
• Boathooks
• Spare fuel cans
• Bathing ladder

Accommodation

The interior of this yacht is beautiful thanks to the top-quality hand-crafted materials used. The interior joinery is a mixture of solid and veneered teak finished in a satin varnish. The flooring is teak and holly laminate which has been protected over the years by pop in carpeting.
This is a layout that will suit either the cruising couple with occasional guests who want to be off grid for extended periods or a family cruiser for weeks away.
Accommodation is accessed via the sliding companionway. A set of gently sloping curved wooden steps lead below where you can’t help but be impressed by the amount of natural light emanating from the portlights and hatches and the full standing headroom throughout the vessel.

Immediately to port is the L-shaped galley with easy clean worktops, double stainless steel sinks and hot and cold pressurised water. Below this section is accesses to plumbing and storage of cleaning materials.
Gas fuelled oven with 2-burner hob and grill with a protective cover that forms part of the countertop when not in use. Top loading refrigerator with drain. Drawer storage within the units and hull mounted storage cupboards above.

Aft of the galley is the double berthed aft cabin with comfortable double berth. This cabin has a hanging wardrobe as well as hull mounted storage cupboards. Light and ventilation from opening ports outboard and to cockpit. 12V reading lights and heating outlet for the Eberspacher diesel fired heating system.

Returning to the saloon and opposite the galley is the forward facing chart table/navigation area. Padded seat with storage below, chart desk with storage, chart reading light and an electronic navigation aids including DSC VHF. 12/240V switch panel with illuminated selector switches for on board systems.

Aft of the chart table is the day heads. This large area is bright and clean with a Jabsco sea toilet with stainless steel holding tank, sink unit with pressurised hot and cold water, shower with drain and mirrored vanity unit. The toilet and pipework were replaced in 2022. In the aft bulkhead is an access door that leads to the enormous cockpit locker. This space also gives access to the heating and hot water systems.

The relaxing saloon area is situated midships. There is a curved settee to starboard with two, double cupboards above and a 12V flat screen TV. Opposite is the U-shaped seating/dinette with fold out leaved extending table. Again, this has two, double cupboards above. This area will provide two decent single berths if required.
In the bow is the ‘Owners’ ensuite cabin with double berth, hull mounted cupboards, fiddled book storage and large cupboard storage beneath the berth. Heads compartment with Jabsco compact toilet. The toilet and all pipework were replaced in 2022. Space saving angled sink unit with double mirrored vanity unit above and separate shower with sump pump out.

• 12V reading and deck head lighting with LED bulbs
• Eberspacher heating with outlets in all cabins
• Eberspacher water heater – NEW 2023
• Hot water calorifier – NEW 2023
• Fully carpeted – NEW 2023
• 12V Cello flatscreen TV – NEW 2023
• Forward cabin mattress replaced 2024
• Stainless steel holding tanks to both toilets
• Internal valet - June 2025

Construction

GRP constructed yacht with lead ballast keel and counter, partial skeg mounted spade rudder. White high gloss topsides with smart blue coveline striping. Moulded rubbing strake and stainless steel stem head fitting offer protection to the gelcoat. Hull topsides were polished and under water areas antifouled in June 2025.
Hand laid teak to decks, coach roof and cockpit. Aft deck with huge lazarette stowage. Inward sloping transom with removable stainless steel boarding ladder. Bespoke stainless steel solar panel mounts fitted to aft rails. Moving forward is safe and secure thanks to the stanchions with double set of uncoated wire and the handily placed grab handles on coach roof. Anchor locker in bow with flush fitting lid. Lofrans vertical mounted windlass mounted within the self draining chain locker.
Comfortable cockpit with leather covered steering wheel mounted to central GRP binnacle. Self bailing cockpit with double helm seat locker with storage below. Access to deep sail locker on starboard side. All locker tops finished in solid teak. Solid teak cockpit table with extending leaves.

• Hull antifouled and new anodes - June 2025
• Hull topsides polished - June 2025
• Underwater skin fittings replaced with bronze - 2024
